A worn, flat, or cracked wheelbarrow tire can bring a simple yard job to a stop, especially when the sidewall numbers are faded or the replacement options all look slightly different. Many people assume every wheelbarrow uses a standard tire, but small differences in diameter, width, hub length, and bearing size can decide whether the new wheel fits properly or wobbles on the axle. Choosing by appearance alone often leads to a wheelbarrow tire that rubs the frame, sits too loosely, or cannot carry the load safely.
Accurate wheelbarrow tire measurement makes the replacement process much easier. Once you know how to read tire markings and check the key dimensions yourself, you can compare options with confidence instead of guessing from product photos. The sections below explain how to measure the tire’s outside diameter and width, confirm the hub and bearing size, understand common sidewall formats such as 4.80/4.00-8, and choose between pneumatic, flat-free, tube, or tubeless options based on how your wheelbarrow is actually used.
Wheelbarrow tires may look simple, but selecting the right replacement requires attention to four key dimensions: tire diameter, tire width, hub length, and bearing or axle diameter. Each measurement plays a critical role in ensuring the wheel sits securely on the axle, maintains proper alignment, and supports the intended wheelbarrow load without wobbling or excessive wear. Ignoring any of these dimensions can lead to a poor fit, reduced stability, and premature tire failure.
For a replacement wheelbarrow tire, the outside diameter affects ground clearance and how the tray sits when loaded. Tire width influences traction, balance, and whether the wheel fits comfortably between the frame supports. Hub length controls how the wheel sits on the wheelbarrow axle, while bearing or axle diameter determines whether the wheel rotates smoothly without looseness or binding.
Most wheelbarrow tires have size information stamped directly on the sidewall, but the formats can vary. The two most common systems are:
● Two-number format, such as 8 x 1.75: The first number represents the tire’s overall diameter in inches, while the second is the width across the tread. This format is often used for smaller or general-purpose wheelbarrow tires.
● Three-number format, such as 4.80/4.00-8: The first number indicates tire width, the second reflects the distance from the tire edge to the rim, and the third is the rim diameter. This multi-fit sizing accommodates a range of rims, making wheelbarrow tire replacement more flexible.
Sidewall markings can fade, become illegible, or simply not account for hub and bearing dimensions. When the numbers are unclear, a physical measurement of the wheelbarrow tire is necessary to confirm compatibility. Even when markings are present, cross-checking helps ensure that the tire will fit the wheelbarrow frame without rubbing against the chassis or creating uneven load distribution.
Dimension | What It Measures | Why It Matters |
Tire Diameter | From top to bottom of inflated tire | Determines overall wheel height, clearance, and stability |
Tire Width | Across the tread from sidewall to sidewall | Influences traction, load distribution, and wheelbarrow frame clearance |
Hub Length | Distance through the center of the wheel | Ensures correct spacing on the wheelbarrow axle to prevent side-to-side movement |
Bearing/Axle Diameter | Inner diameter of the hub or axle hole | Confirms the wheel will rotate smoothly without wobbling or binding |
Even experienced users can make mistakes when interpreting wheelbarrow tire sizes. Common errors include confusing tire diameter with width, which can result in ordering a tire that is either too narrow or too tall for the rim. Overlooking hub length is another frequent problem. If the hub is too short, the wheel may slide laterally on the wheelbarrow axle; if it is too long, the rim may extend beyond the frame.
Another issue is ignoring tire type. A wheelbarrow tire may be marked tubeless, but the current setup could still have an inner tube if the rim cannot hold air properly. Checking both the sidewall and the valve area helps prevent mismatched replacement parts and inflation problems.
Before buying a replacement wheel, tire, or inner tube, take a few minutes to measure the parts that affect fit. A tape measure works well for wheelbarrow tire diameter, tire width, and hub length. For the bearing or axle opening, a caliper is better because small differences matter. A wheelbarrow tire that looks “close enough” can still wobble, rub against the frame, or fail to sit correctly on the axle.
For the most accurate result, measure the wheelbarrow tire while it is inflated and mounted on the wheel, if possible. If the tire is completely flat, badly cracked, or separated from the rim, use the existing sidewall size as a reference and confirm the wheel and hub measurements separately.
Start with the tire diameter. Place the wheel upright on a flat surface and measure from the highest point of the tire straight down to the lowest point. This gives you the overall outside diameter, not the rim size. For many common wheelbarrow tires, the total diameter may be around 15 to 16 inches, but the exact number depends on the tire style, tread depth, and inflation level.
Next, measure the tire width across the tread. Hold the tape measure from one outer sidewall to the other, crossing the widest part of the wheelbarrow tire. Do not measure only the rim or the inner opening. Width helps determine whether the tire will fit between the wheelbarrow frame supports and whether it can provide enough stability for the load.
A few details can affect these numbers:
● Low air pressure can make the tire look shorter and wider than it is when properly inflated.
● Deep tread patterns can slightly increase the outside diameter of a wheelbarrow tire.
● Worn tread may make an old tire measure smaller than the original size.
● Bulging sidewalls can make width measurements unreliable on damaged wheelbarrow tires.
When possible, compare your measurements with the size stamped on the sidewall. If the numbers do not match perfectly, use the sidewall marking as the main wheelbarrow tire size reference and your manual measurements as a fit check.
The hub length is just as important as the tire size. To measure it, run the tape measure through the center of the wheel from one end of the hub to the other. Measure the full distance from bearing face to bearing face, not just the visible outside edge. This tells you how much space the wheelbarrow wheel takes up on the axle.
If the hub is too short, the wheel may slide from side to side while you push the wheelbarrow. If it is too long, the wheel may not seat properly, or the rim may extend beyond the axle hardware. Either issue can make the wheelbarrow feel loose, uneven, or difficult to control.
For the bearing size, measure the inside diameter of the hole where the axle passes through. A caliper gives the cleanest reading, especially if the size is close to common wheelbarrow axle diameters. You can also measure the axle itself to confirm the match. The bearing opening should fit the axle closely enough to rotate smoothly without excessive play, but not so tightly that the wheel binds or resists turning.
Once you have the tire diameter, width, hub length, and bearing size, use those numbers to narrow your replacement options. A wheelbarrow tire does not need to match the old one in brand, but it does need to match the wheelbarrow’s axle, frame clearance, and working load. The safest approach is to compare the sidewall size first, then confirm the hub and bearing measurements before buying.
A correct replacement wheelbarrow tire should roll smoothly, sit centered on the axle, and leave enough space between the tray supports or fork brackets. If any of those points are off, the wheelbarrow may feel unstable even if the tire diameter seems right.
A common size you may see on a wheelbarrow tire is 4.80/4.00-8. This is often treated as a multi-fit size, meaning it is designed to work with rims that fall within a close size range. A tire marked 4.00-8 may look similar, and in many cases it fits the same type of small utility wheel, but you should not assume it is automatically interchangeable. Check the rim diameter, overall tire height, and width before replacing one wheelbarrow tire with another.
For standard garden wheelbarrows, smaller pneumatic tires are usually enough for soil, mulch, plants, and general yard waste. Heavier-duty wheelbarrow models may use larger, wider tires such as 16x6.50-8, which offer more ground contact and better support under heavier loads. A wider tire can improve wheelbarrow stability, but it also needs enough room between the wheelbarrow forks. If the tire is too wide, it may rub the frame or make the wheel difficult to install.
Use this quick fit check before ordering:
Checkpoint | What to Confirm |
Sidewall size | Matches or closely corresponds to the old wheelbarrow tire size |
Rim diameter | Fits the wheel rim, not just the outside tire height |
Hub length | Sits correctly on the wheelbarrow axle without side-to-side play |
Bearing size | Matches the axle diameter for smooth rotation |
Frame clearance | Tire does not rub the tray supports or wheel brackets |
Before choosing a replacement, check whether your current wheelbarrow tire uses an inner tube. The sidewall may be marked “tube type” or “tubeless,” but that marking alone does not always tell the full story. Some tubeless wheelbarrow tires are installed with tubes because the rim is not airtight or has aged, rusted, or become difficult to seal.
A simple valve test can help. Deflate the tire and watch the valve stem. If the valve stays fixed firmly in the rim, the setup is likely tubeless. If the valve pulls inward or drops into the tire, there is probably a tube inside. You can also push the tire bead away from the rim slightly and look inside if the tire is already off the wheel.
Tube tires are often easier and cheaper to repair because you can replace the tube instead of the whole wheelbarrow tire. Tubeless tires reduce the number of parts, but they depend on a clean, well-sealed rim. If the rim is rusty or damaged, adding or replacing a tube may be the more practical wheelbarrow repair choice.

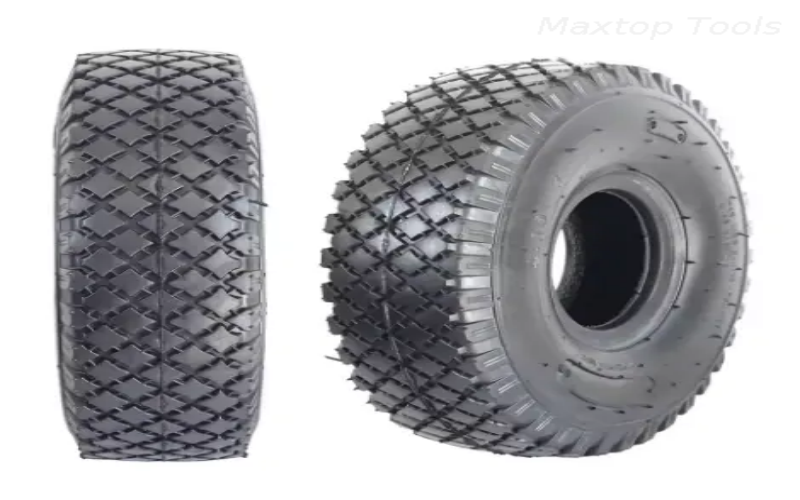

Tread matters more than many buyers expect. A ribbed tread rolls smoothly and works well on firm paths, patios, and general garden surfaces. A block tread gives better grip on loose soil, grass, gravel, or uneven ground, especially when the wheelbarrow is carrying weight.
Also check the ply rating or load rating. Higher-ply wheelbarrow tires usually handle heavier loads and resist punctures better, but they can feel stiffer. For light garden work, flexibility and easy rolling may matter more. For hauling rocks, wet soil, firewood, or construction debris, choose a tire with stronger sidewalls and enough load capacity for the job.
Wheelbarrow tires are not all built for the same kind of work. Once the measurements match, the tire type determines how the wheelbarrow feels under load, how much maintenance it needs, and how well it handles rough ground. The size ranges below are useful starting points, but always confirm your own wheelbarrow tire diameter, hub length, and bearing size before buying.
Flat-free wheelbarrow tires are usually made with solid foam or polyurethane, so they do not need air and will not go flat from thorns, nails, or sharp debris. They are a practical choice for users who care more about reliability than cushioning. Many flat-free wheelbarrow tires fall in the 16–26 inch diameter range, though the exact fit still depends on hub length and axle size. They can feel firmer than pneumatic tires, especially on bumpy ground, but they remove the hassle of checking pressure or patching tubes.
Pneumatic wheelbarrow tires are air-filled, which gives them better shock absorption and smoother rolling over gravel, soil, roots, and uneven garden paths. Common diameters range from about 8.5 to 16 inches, depending on the wheelbarrow style and load capacity. They are often the best choice when comfort and traction matter, but they require more upkeep. Low pressure can make the wheelbarrow tire drag or deform under weight, while punctures may require a patch, new tube, or full replacement.
Hard rubber tires are solid, compact, and often used for lighter-duty wheelbarrows or carts. Typical sizes are around 8–12 inches in diameter. They are resistant to flats, but they do not cushion the load as well as air-filled wheelbarrow tires.
Spoked wheels are built with a different support structure and can appear on wheelbarrows, carts, and utility equipment. Their diameters commonly range from 11–26 inches. They may offer strong support, but fit depends heavily on axle diameter and hub spacing rather than tire diameter alone.
Before ordering, check more than the tire label. A few small details often decide whether the replacement wheelbarrow tire will actually fit:
● Measure twice, especially the hub length and bearing opening.
● Check whether the wheelbarrow hub is centered or offset to one side.
● Make sure the tire has enough clearance inside the wheelbarrow frame.
● Use a universal wheelbarrow tire kit with spacers if your hub width is hard to match.
● Inspect the rim for rust, dents, or corrosion before reusing it, since rough metal can damage tubes and prevent a good seal.
●
Measuring a wheelbarrow tire comes down to four details: outside diameter, tire width, hub length, and bearing or axle size. Sidewall markings are helpful, but they do not always show the full fit requirements, especially when the tire is worn or the wheel assembly needs replacing. Taking a few careful measurements before buying helps prevent wobbling, rubbing, poor axle fit, and unnecessary returns.
For buyers comparing replacement wheels, tires, or complete wheelbarrow parts, Qingdao Maxtop Tools Co.,Ltd. offers practical options designed for everyday garden, construction, and utility use. Matching the correct wheelbarrow tire type and size to the job helps keep the wheelbarrow stable, easier to push, and reliable under load.
A: Check the sidewall first. If the numbers are worn off, measure the outside wheelbarrow tire diameter, tread width, hub length, and bearing opening with a tape measure or caliper.
A: The first numbers refer to the tire width range, while the final number shows the rim diameter in inches. It is a common multi-fit wheelbarrow tire size.
A: Many wheelbarrow wheels are around 13 or 16 inches in diameter, with 6- or 8-inch rims, but actual sizes vary by model and use.
A: Yes. Hub length determines how the wheel sits on the wheelbarrow axle. If it is too short or too long, the wheel may wobble or fail to fit correctly.
